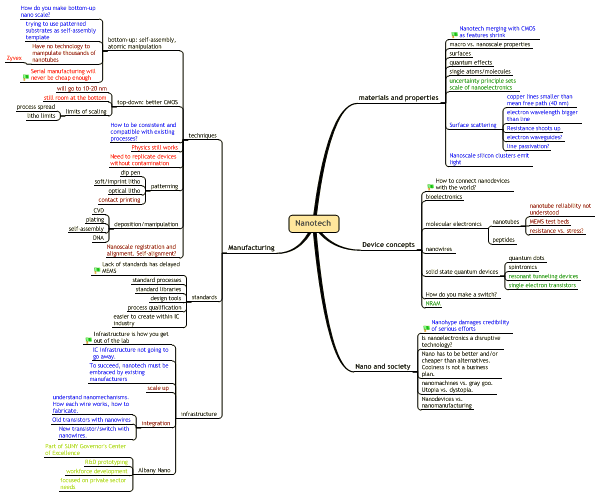

For those who might be interested, this is the visual outline I created for an article on nanotechnology that will appear in Semiconductor Manufacturing Magazine. Some notes for the article, and a more complete discussion of my working methods, can be found in Thin Film Wiki. As with all wiki pages, contributions are welcome.
